Sunbird Turbo vacuum diagram...

Post by Big P »

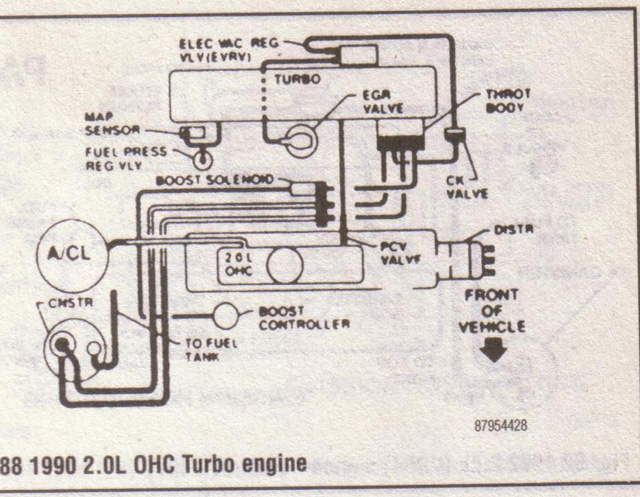

This was an old file I found on my computer for the routing of all the vacuum lines for the Sunbird's that came with the turbo. I figured maybe someone could use it.
Attachments
(143.07 KiB) Downloaded 382 times
